Victor

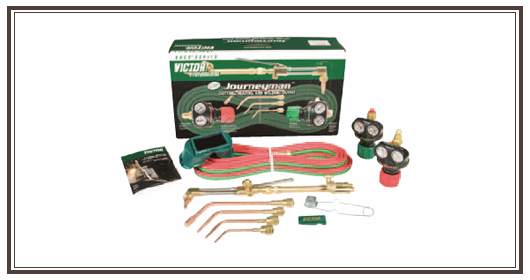

JOURNEYMAN® HEAVY DUTY

JOURNEYMAN® HEAVY DUTY

This heavy duty system cuts up to 3/4″ (19.1 mm) or 8″ (203.2 mm) with optional tips. It welds up to 1/2″ (12.7 mm) or 3″ (76.2 mm) with optional nozzles.

  • ESS4 Series regulators
  • H 315FC torch handle with built-in flashback arrestors and check valves
  • CA 2460 cutting attachment
  • Cutting tip (1-1-101)
  • MFA heating nozzle (8-MFA)
  • Welding nozzles (1, 3 & 5)
  • T-grade hose 20′ x 1/4″ (6.1 m x 6.4 mm)
  • Striker and tip cleaner
  • Soft-sided shade 5 goggles

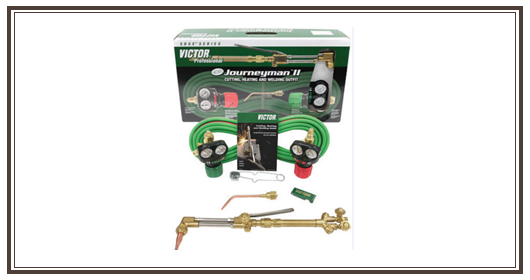

JOURNEYMAN® II HEAVY DUTY

This heavy duty system cuts up to 3/4″ (19.1 mm) or 8″ (203.2 mm) with optional tips.
It welds up to 1/8″ (3.2 mm) or 3″ (76.2 mm) with optional nozzles.

  • ESS4 Series regulators
  • 315FC torch handle with built-in flashback arrestors and check valves
  • CA 2460 cutting attachment
  • Cutting tip (1-1-101)
  • Welding nozzle (2-W)
  • T-grade hose 20′ x 1/4″ (6.1 m x 6.4 mm)
  • Striker and tip cleaner
  • Soft-sided shade 5 goggles

EN 60974-11 CLASS B

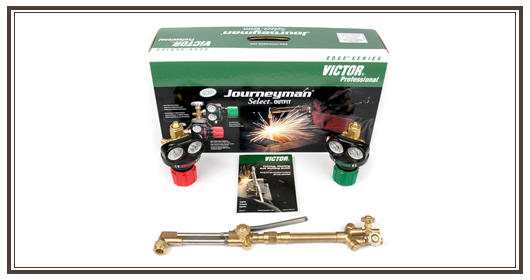

JOURNEYMAN® SELECT HEAVY DUTY

Spark Lighters And Accessories

This heavy duty system cuts up to 8″ (203.2 mm) and welds up to 3″ (76.2 mm) with accessories.

  • 315FC torch handle with built-in flashback arrestors and check valves
  • CA 2460 cutting attachment
  • ESS4 Series regulators

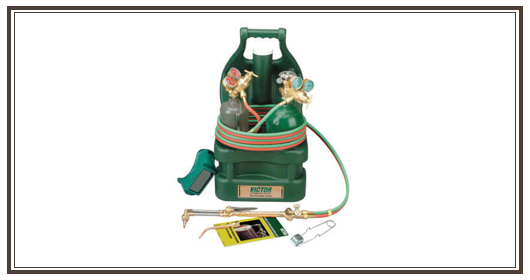

Medium Duty Portable Outfit, 100FC Torch Handle, CA 1350 Cutting Attachment, 540/MC CSR 150 Regulators, With Cylinders

  • CSR 150 Series regulators
  • 100FC torch handle with built-in flashback arrestors and check valves
  • CA 1350 cutting attachment
  • Welding nozzle (See chart)
  • Cutting tip (See chart)
  • T-grade hose 10′ x 3/16″ (3.1 m x 4.8 mm)
  • Striker and goggles
  • Optional
  • 10 cu. ft. CGA 200 acetylene cylinder
    20 cu. ft. CGA 540 oxygen cylinder

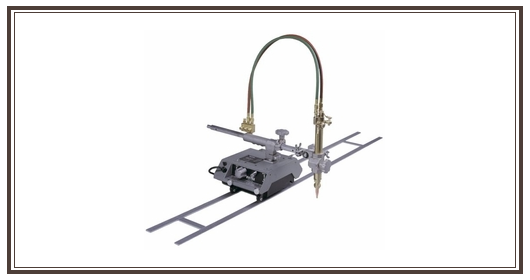

VCM 200 PORTABLE CUTTING MACHINE

The versatile VCM 200 is a precision, tractor-type machine that
can be used on its own track for straight line cutting and a
variety of welding operations. Off track and with a radius rod
assembly, the VCM 200 can also be used for circle cutting

VCM 200 PORTABLE CUTTING MACHINE

STRAIGHT LINE / CIRCLE

  • Length increments of 72″ (182.9 cm) (track length)
  • Circle diameters 4″ (101.6 mm) to 96″ (243.8 cm)
  • SPEED RANGE: 1-60″/minute (25.4 mm-152.4 cm/minute)
  • VCM 200E & VCM 200HT : Speed range: 1-60″ (25.4 mm-152.4 cm)
  • VCM 200HS: Speed range 5-120″ (127 mm-304.8 cm)

STANDARD MACHINE INCLUDES

  • Cutting machine
  • MT 210A torch & torch rack
  • Hoses & fittings (for 2 hose operation)
  • 32 pitch pinion torch holder
  • 3 hose manifold block

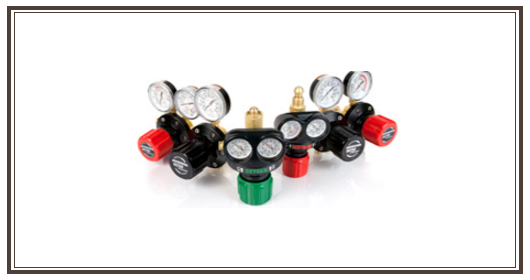

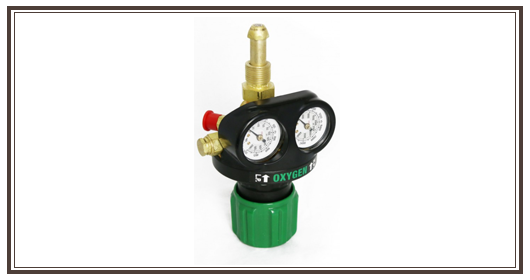

EDGE™ SERIES ESS4 HIGH CAPICITY REGULATORS

Medium Duty Portable Outfit, 100FC Torch Handle, CA 1350 Cutting Attachment, 540/MC CSR 150 Regulators, With Cylinders

  • Single Stage, High Capacity
  • External self reseating relief valve in high pressure models
  • Color-coded SLAM™ impact absorbing safety knob
  • Meets or exceeds CGA E-4, UL 252 and ASTM G-175
  • Promoted Ignition TestM
ModelMax Inlet Pressure(PSIG)Delivery Range(PSIG)Gas Service
ESS4-12530005-125Air, Oxygen, Inert, Methane, Hydrogen, CO2
ESS4-20030002-200
ESS4-4030002-40LPG
ESS4-1530002-15Acetylene

EDGE™ SERIES ESS4 HIGH CAPICITY REGULATORS

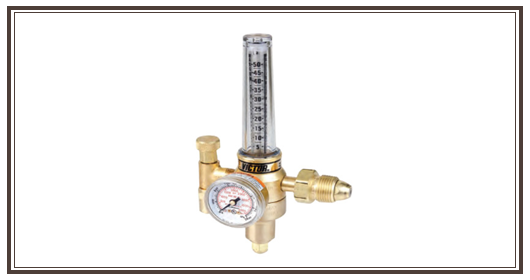

HRF 2400, MEDIUM DUTY FLOW METER REGULATOR

HRF 2400, MEDIUM DUTY FLOW METER REGULATOR

Regulator / flow meter combination in one compact unit

ModelMax Inlet Pressure(PSIG)Outlet Pressure(PSIG)Application
HRF2425300025MIG / TIG applications
HRF2480300085

EDGE™ SERIES ESS7 HIGH FLOW REGULATORS

  • Single Stage, Extra High Capacity
  • Replaces SR 700 series
  • High strength Zinc-Aluminum housing cap
  • Color-coded SLAM impact absorbing safety knob
  • Meets or exceeds CGA E-4, UL 252 and ASTM Promoted Ignition Test
ModelMax Inlet Pressure(PSIG)Delivery Range(PSIG)Gas Service
ESS7-200300010-200Air, Oxygen, Inert,
Methane & Hydrogen
ESS7-1530002-15Acetylene
ESS7-12530005-125LPG

EDGE™ SERIES ESS7 HIGH FLOW REGULATORS

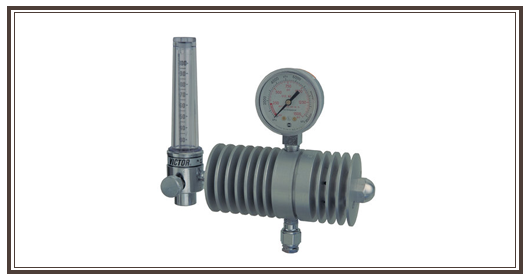

FLOW METER SR 311

FLOW METER SR 311, HIGH CAPACITY, 100 SCFH, CARBON DIOXIDE, 320, 5/8-18 (F) CGA 032

  • Delivery Range (CFH): 25-100
  • Max Inlet Pressure (PSIG): 1500 PSIG

SR 4 SERIES HIGH PRESSURE REGULATORS

Heavy duty, high pressure piston regulator. Ideally suited for pressure vessel and dead-end testing. Maximum Inlet pressure from 3000 to 7500 psig depending on the models.

ModelDelivery Range(PSIG)Gas Service
SR4F50-750Air, Oxygen, Inert, CO2
Methane & Hydrogen
SR4G100-1500Air, Oxygen, Inert, Methane & Hydrogen
SR4J200-3000
SR4K300-4500Air, Oxygen & Inert

SR 4 SERIES HIGH PRESSURE REGULATORS

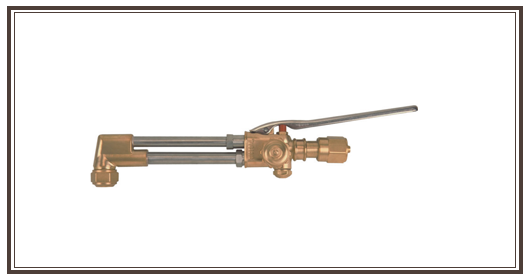

CA 2460/CA2462 CUTTING ATTACHMENT HEAVY DUTY

CA 2460/CA2462 CUTTING ATTACHMENT HEAVY DUTY

  • Performance matched for each torch handle series
  • Forged brass head
  • Spiral mixer blends oxygen & fuel
  • Smooth cutting valve (push type)
  • Stainless steel tubes
  • Brass coupling nut & double “O” ring tapered seal gives quick
  • gas-tight seal without a tightening wrench
ModelCutting RangeTip SeriesHead Angle
CA24608″ (203.2 mm)190°
CA2462180°

(for use with all fuel gases with appropriate tip)

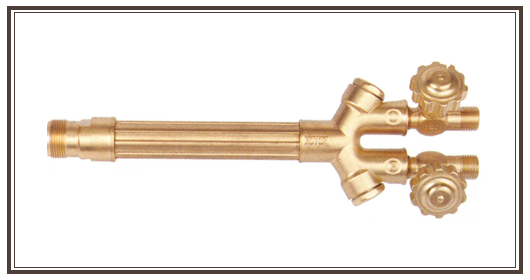

H315FC TORCH HANDLE – EXTRA HEAVY DUTY 315FC TORCH HANDLE – HEAVY DUTY

  • Built-in flashback arrestors – no need for accessory flash arrestors
  • Built-in reverse flow check valves – no need for accessory check valves
  • Works with all fuel gases. There are pressure restrictions for different gases

HD 310C TORCH HANDLE – HEAVY INDUSTRY

  • Compatible with high capacity heating nozzles
  • Flashback arrestors recommended

H315FC TORCH HANDLE

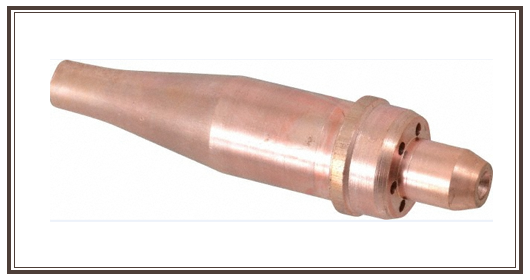

VICTOR SERIES 1 TYPE 101 – ACETYLENE

VICTOR SERIES 1 TYPE 101 – ACETYLENE

  • General purpose
  • Hand and machine torch cutting
  • Available from 000 to 8 size to cut different thickness

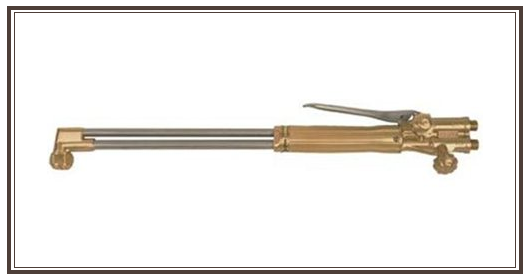

HEAVY DUTY STRAIGHT CUTTING TORCH

  • Includes built-in patented flashback arrestors and reverse flow check valves for added safety
  • For use with all fuel gases with appropriate tip
  • (for use with all fuel gases with appropriate tip)

ModelCutting RangeTip SeriesHead Angle
ST2600FC1/8 (3.2 mm) to 8″ (203.2 mm)190°
ST900FC1/8 (3.2 mm) to 5 (127.0 mm)90°

H315FC TORCH HANDLE

FLASHBACK ARRESTORS AND CHECK VALVES

FLASHBACK ARRESTORS AND CHECK VALVES

  • FB-1: Oxy-fuel flashback arrestor pair pack for Regulator
  • FBR-1: Oxy-fuel flashback arrestor pair pack for Regulator
  • CTO & CTF Torch – Check Valves Pair Pack (Oxygen & Fuel)
  • CRO & CRF Regulator – Check Valves Pair Pack (Oxygen & Fuel)

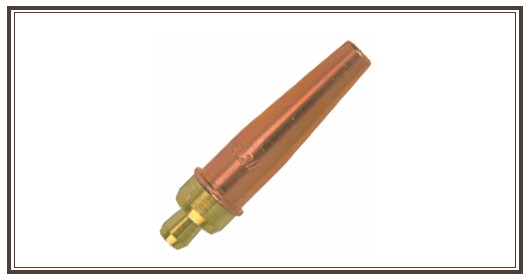

VICTOR SERIES 1 TYPE GPN – LP (PROPANE / NATURAL GAS)

  • General purpose
  • Hand and machine cutting
  • Available from 000 to 8 size to cut different thickness

VICTOR SERIES 1 TYPE GPN – LP (PROPANE / NATURAL GAS)

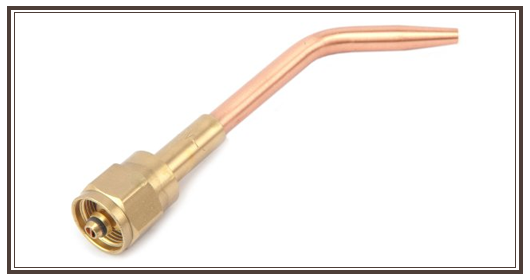

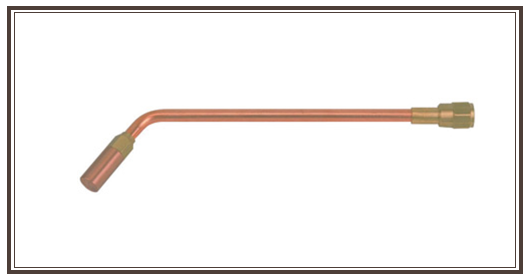

WELDING NOZZLES – TYPE W

WELDING NOZZLES – TYPE W

For use with 300 Series Torch Handles. General purpose welding and heating. Fuel Gas Usage – Acetylene, Hydrogen

  • Available from 000 to 10 sizes
  • 65° tip angle
  • Long cone flame
  • One piece copper elbow tip

MFA/MFN HEATING NOZZLES, USE WITH 300 & HD310C SERIES TORCH HANDLES

  • MFA – Multi-flame heating head for heat treating, straightening and priming
  • Acetylene / Hydrogen
  • MFN – Multi-flame heating head for preheating, priming and straightening
  • LP Gases

MFA/MFN HEATING NOZZLES
